GS1350 Serisi, özellikle gözetim uygulamalarınız için akıllı ve sezgisel bir web arayüzü deneyimi sunar.
Kameralarınızı ve PoE durumunu bir bakışta izleyin ve gözetim ağınızı son derece kolay bir şekilde kurun.

GS1350 Serisi, Zyxel NebulaFlex Pro ailesine katılıyor ve bu sayede birkaç basit tıklamayla bağımsız yönetim ile sezgisel Nebula bulut yönetim platformu arasında kolayca geçiş yapabilirsiniz. Her iki yönetim seçeneği de gözetim ağınızı kolaylıkla yönetmenize yardımcı olacak özel gözetim özelliklerine sahiptir.
Arızalı IP kameraları ve güç kaynağına bağlı cihazları, her türlü cihaz ve senaryoya uygun, özelleştirilebilir ayrıntılı parametrelerle otomatik olarak tespit edin ve kurtarın.
Geleneksel olarak, PoE anahtarları 100 metrelik bir mesafe sınırlaması dahilinde güç ve veri iletir. GS1350 serisi, mevcut Cat 5e kablosunu kullanarak IP kameraları veya güç cihazlarını uzak konumlara dağıtma ihtiyacını karşılar. Genişletilmiş menzil modunu etkinleştirerek, 250 metreye kadar uzak mesafelerde anında dağıtım sağlayabilirsiniz. Tek bir PoE ile paradan ve emekten tasarruf edin.

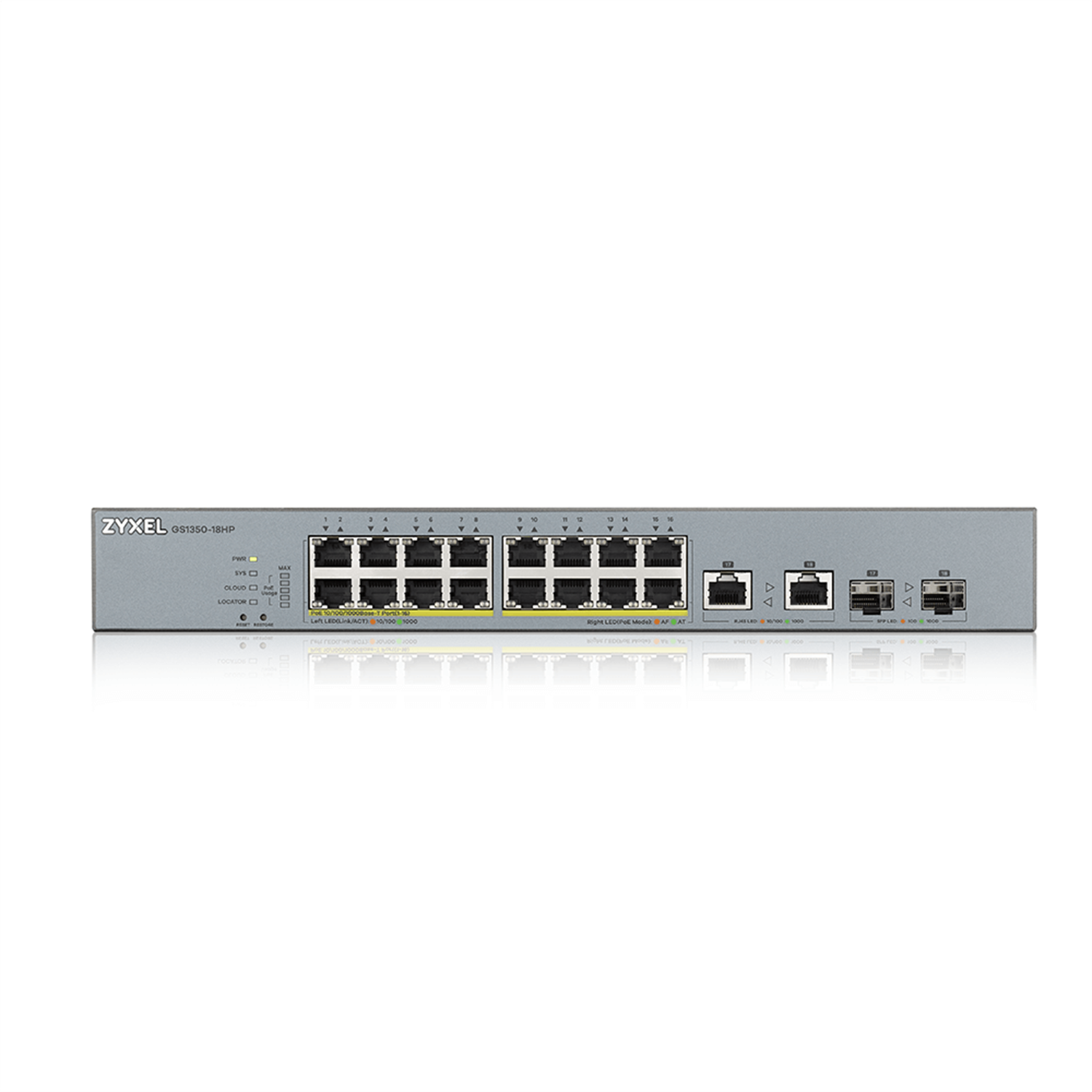

GS1350 serisi, birden fazla IP kamerayı çalıştırma ihtiyacını karşılamak üzere 375 W'a kadar yüksek güç kapasitesine sahip dört model içermektedir. Ön paneldeki sezgisel LED göstergesi, gerçek zamanlı PoE durumunu incelemeye olanak tanır. Ayrıca, GS1350 Serisindeki tek dokunuşla çalışan "Geri Yükle" düğmesi, yanlış yapılandırmalardan zahmetsizce kurtulmaya yardımcı olur.
| GS1350-6HP | GS1350-12HP | GS1350-18HP | GS1350-26HP | |
|---|---|---|---|---|
| Model | ||||
| Product name | 5-port GbE Smart Managed PoE Switch with GbE Uplink | 8-port GbE Smart Managed PoE Switch with GbE Uplink | 16-port GbE Smart Managed PoE Switch with GbE Uplink | 24-port GbE Smart Managed PoE Switch with GbE Uplink |
| Switch class | Smart Managed | Smart Managed | Smart Managed | Smart Managed |
| Port Density | ||||
| Total port count | 6 | 12 | 18 | 26 |
| 100/1000 Mbps | 5 | 10 | 16 | 24 |
| Gigabit SFP | 1 | 2 | - | - |
| Gigabit combo (RJ-45/SFP) | - | - | 2 | 2 |
| Configurable extended range ports | 5 | 8 | 16 | 24 |
| PoE | ||||
| PoE ports | 5 | 8 | 16 | 24 |
| Total PoE budget (watt) | 60 | 130 | 250 | 375 |
| PoE Standard | 802.3af/at 802.3bt (port 1-2) | 802.3af/at | 802.3af/at | 802.3af/at |
| Performance | ||||
| Switching capacity (Gbps) | 12 | 24 | 36 | 52 |
| Forwarding rate (Mpps) | 8.9 | 17.8 | 26.7 | 38.7 |
| Packet buffer (byte) | 525 K | 525 K | 525 K | 525 K |
| MAC address table | 8 K | 8 K | 8 K | 8 K |
| Power | ||||
| Input | 52 V - 57 V DC | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz | 100 - 240 V AC, 50/60 Hz |
| Max. power consumption (watt) | 72 | 160.3 | 300.9 | 448.9 |
| Physical Specifications | ||||
| Dimensions (WxDxH)(mm/in.) | 193 x 84 x 26 / 7.6 x 3.31 x1.02 | 267 x 162 x 44 / 10.51x 6.38 x1.73 | 330 x 230 x 44 / 12.99 x 9.06 x1.73 | 441 x 270 x 44 / 17.36 x10.63 x 1.73 |
| Weight (kg/lb.) | 0.41/0.9 | 1.63/3.59 | 2.42/5.34 | 3.58/7.89 |
| Included accessories |
|
|
|
|
| ESD/Surge Protections | ||||
| Ethernet port surge protection | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-GND | 4 KV | 4 KV | 4 KV | 4 KV |
| Power supply surge protection: Line-Line | 2 KV | 2 KV | 2 KV | 2 KV |
| Ethernet port ESD protection (air/contact) | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV | 15 KV/8 KV |
| Environmental Specifications | ||||
| Operating | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) | Temperature -20°C to 50°C/-4°F to 122°F Humidity 5% to 95% (non-condensing) |
| Storage | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) | Temperature -40°C to 70°C/-40°F to 158°F Humidity 5% to 95% (non-condensing) |
| MTBF (hr) | 2,021,885.87 | 1,065,025.45 | 1,699,692.18 | 888,495 |
| Heat dissipation (BTU/hr) | 245.52 | 546.62 | 1,026.07 | 1,530.75 |
| Acoustic noise @ 25°C (dBA) | 0 (Fanless) | 27.3 | 39 | 40.1 |
