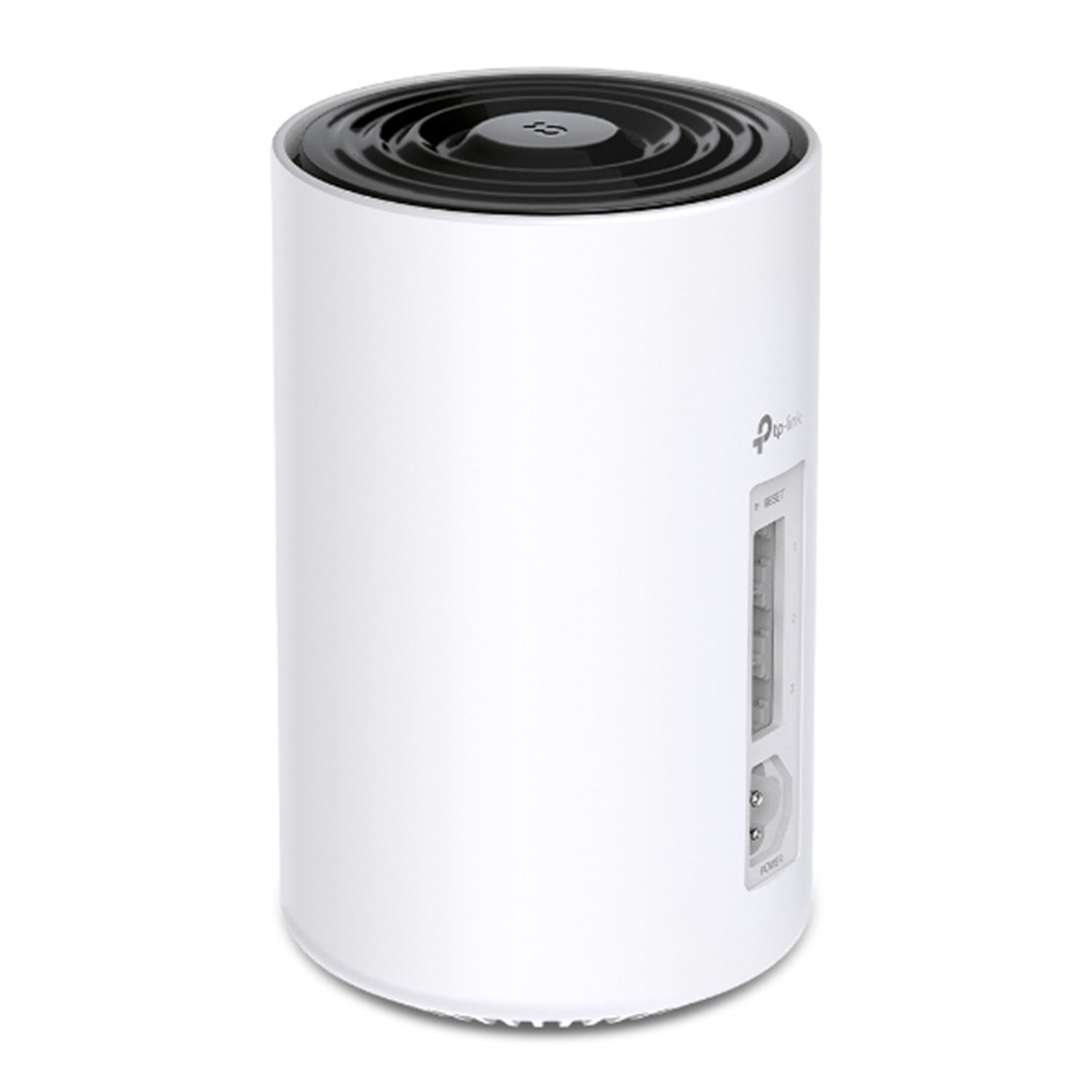

Deco PX50
| KABLOSUZ | |
|---|---|
| Standards and Protocols | Wi-Fi 6 IEEE 802.11ax/ac/n/a 5 GHz IEEE 802.11ax/n/b/g 2.4 GHz |

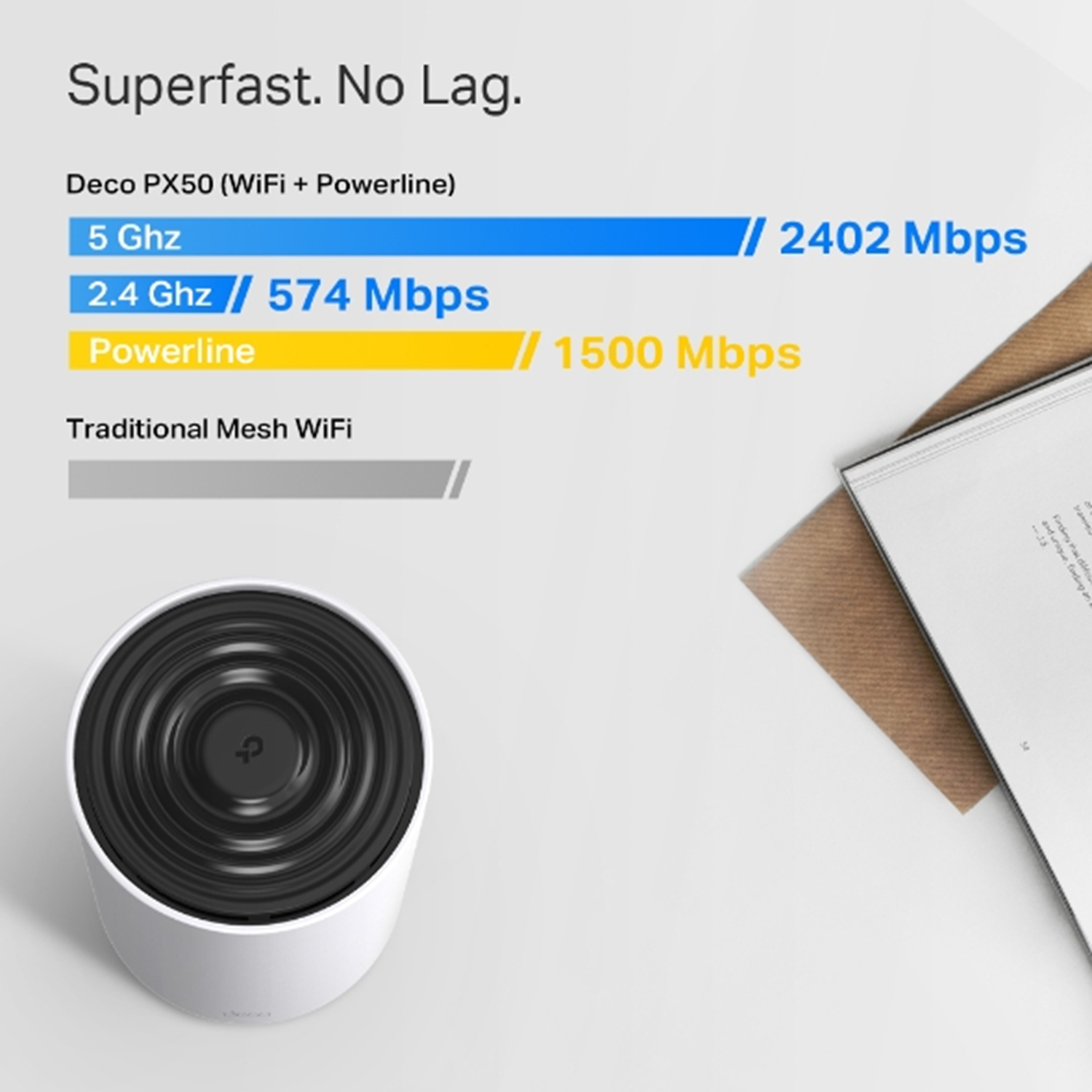

| WiFi Speeds | AX3000 5 GHz: 2402 Mbps (802.11ax) 2.4 GHz: 574 Mbps (802.11ax) |
| Powerline Speeds | G.hn 1.5 Gbps Powerline |
| WiFi Range | 4-6+ Bedroom Houses (3-pack)TP-Link Mesh Technology Optional Ethernet backhaul work together to link Deco units to provide seamless coverage Powerline Technology Uses your home's electrical wiring to create stronger connections between Deco units, reducing the impact of walls or other obstacles on signal 2 × dual-band antennas Multiple antennas form a signal-boosting array to cover more directions and large areas |
| WiFi Kapasitesi | MediumDual-Band Distribute devices to different bands for optimal performance MU-MIMO Simultaneously communicates with multiple MU-MIMO clients OFDMA Simultaneously communicates with multiple WiFi 6 clients |
| Working Modes | Router Mode Erişim Noktası Modu |
| GÜVENLİK | |
|---|---|
| Ağ Güvenliği | SPI Güvenlik Duvarı Erişim Kontrolü |
| Misafir Ağı | 1× 5 GHz Misafir Ağı 1× 2,4 GHz Misafir Ağı |
| WiFi Şifreleme | WPA/WPA2/WPA3 |
| DONANIM | |
|---|---|
| Ethernet Bağlantı Noktaları | 3 × Gigabit limanı *Aralık Birimi Başına WAN/LAN otomatik algılamayı destekler |
| Butonlar | Düğmeyi Sıfırla |
| YAZILIM | |
|---|---|
| Protokoller | IPv4 IPv6 |
| Servis Kiti | HomeShield Daha Fazla Bilgi Edinin> |
| WAN Türleri | Dinamik IP Statik IP PPPoE L2TP PPTP |
| Hizmet Kalitesi | Ana SayfaKalkan QoSCihaza Göre QoS |
| Bulut Hizmeti | OTA Firmware Yükseltme TP-Bağlantı Kimliği DDNS |
| NAT Yönlendirme | Port Yönlendirme UPnP |
| IPTV | IGMP Proxy'si IGMP Gözetleme Köprü Etiket VLAN |
| DHCP | Address Reservation DHCP Client List Server |
| DDNS | TP Bağlantısı |
| Yönetim Özellikleri | Deco Uygulaması |
| DIĞER | |
|---|---|
| Varsayılan Olarak Etkinleştirilen Ağ Hizmetleri | Web Sunucusu Cihazı web üzerinden yönetin ve yapılandırın (HTTP/HTTPS) • Bağlantı Noktası: 80/443 Protokol: TCP DNS DNS • Bağlantı Noktası: 53 Protokol: TCP ve UDP DHCP Sunucusu IP adresi ataması (DHCP) • Bağlantı Noktası: 67 Protokol: UDP Uygulama yönetimi Cihazı uygulama aracılığıyla yönetin ve yapılandırın • Bağlantı Noktası: 22 Protokol: TCP • Bağlantı Noktası: 20001 Protokol: TCP • Bağlantı Noktası: 30001 Protokol: TCP • Bağlantı Noktası: 20002 Protokol: UDP |
| TEST TARIHI | |
|---|---|
| WiFi İletim Gücü | CE: <20 dBm (2,4 GHz) <23 dBm (5 GHz) FCC: <30 dBm |
| FIZIKSEL | |
|---|---|
| Boyutlar (W×D×H) | 4,1 × 4,1 × 6,7 inç (105 × 105 × 169 mm) |
| Paket İçeriği | Deco PX50 (3'lü paket) 3× Deco PX50 Üniteleri(elektrik hattı olan yönlendiriciler) 1× RJ45 Ethernet Kablosu 3× Güç Kabloları Hızlı Kurulum Kılavuzu Deco PX50 (2'li paket) 2× Deco PX50 Üniteleri(elektrik hattı olan yönlendiriciler) 1× RJ45 Ethernet Kablosu 2× Güç Kabloları Hızlı Kurulum Kılavuzu |
| D ?? ERLER ?? | |
|---|---|
| Sertifikalar | CE, FCC, RoHS |
| Ortam | Operating Temperature: 0°C~40°C (32 °F~104 °F) Storage Temperature: -40°C~60°C (-40 °F~140 °F) Operating Humidity: 10%~90% RH Storage Humidity: 5%~90% RH |
